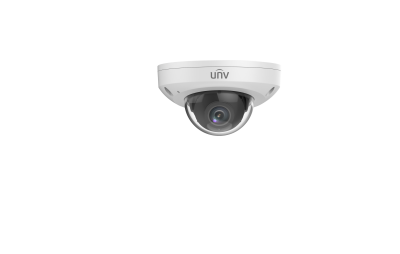

2MP Vandal-Resistant IR Fixed Mini Dome Camera (Prime)

Product Description

Optics

Day/night functionality
Smart IR, up to 15 m (49 ft) IR distance
2D/3D DNR (Digital Noise Reduction)
Car-grade LEDs, brighter and uniform light compensation

Compression

Ultra 265, H.264, MJPEG
Embedded smart algorithm
Triple Streams
ROI (Region of Interest)
Customized OSD

Network

ONVIF Conformance

Structure

Wide temperature range: -30°C to 60°C (-22°F to 140°F)
Wide voltage range of ±25%
Built-in microphone
IK10 vandal resistant
IP67
3-Axis

Technical Specifications

	IPC312SR-VPF28-C				IPC312SR-VPF40-C
Camera
Sensor	1/2.9″, 2.0 megapixel, progressive scan, CMOS
Lens	2.8mm@F2.0				4.0mm@F2.0
DORI Distance	Lens (mm)	Detect (m)		Observe (m)		Recognize (m)		Identify (m)
	2.8	45		18		9		4.5
	4.0	64.3		25.7		12.9		6.4
Angle of View (H)	107.8°				82.0°
Angle of View (V)	56.7°				41.4°
Angle of View (O)	140.2°				100.9°
Adjustment angle	Pan: 0° ~ 90°		Tilt: 0° ~ 65°				Rotate: 0° ~ 360°
Shutter	Auto/Manual, 1 ~ 1/100000s
Minimum Illumination	Colour: 0.005Lux (F2.0, AGC ON) 0Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	≥52dB
IR Range	Up to 15m (49ft) IR range
Defog	Digital Defog
WDR	DWDR
Video
Video Compression	Ultra 265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream: 2MP (19201080), Max 30fps; Sub Stream: 2MP (19201080), Max 30fps; Third Stream: D1 (720*576), Max 30fps
HLC	Supported
BLC	Supported
9:16 Corridor Mode	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
Smart
Behavior Detection	Intrusion, cross line, motion detection
Intrusion	Enter and loiter in a pre-defined virtual region
cross line	Cross a pre-defined virtual line
motion detection	Moving within a pre-defined virtual region
Recognition	Face detection, Audio detection
Intelligent Identification	Defocus, Scene Change, Object Left, Object Moving
Statistical Analysis	People counting
General Function	Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression	G.711
Two-way audio	Supported
Suppression	Supported
Sampling Rate	8KHZ
Storage
Edge Storage	Micro SD, Up to 256GB
Network Storage	ANR
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API
Interface
Audio I/O	audio cable
	Input: impedance 35kΩ; amplitude 2V [p-p]
	Output: impedance 600Ω; amplitude 2V [p-p]
Built-in Mic	Supported
Network	1 RJ45 10M/100M Base-TX Ethernet
General
Power	DC 12V±25%, PoE (IEEE 802.3af)
	Power consumption: Max 4.5W
Dimensions (Ø x H)	Φ110 x 61mm (Ø4.3” x 2.4”)
Weight	0.25kg (0.55lb)
Working Environment	-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection	IP67
Vandal Resistant	IK10
