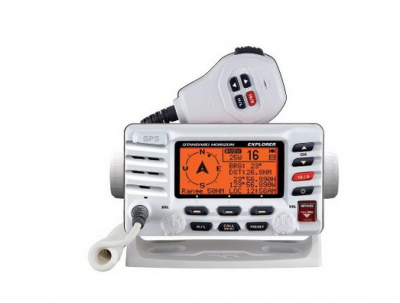

The EXPLORER GPS (GX1700) makes DSC easy.

With an internal 12 Channel GPS built into the front panel, there is no need to hassle with wiring the radio to a GPS for DSC.

, .

Product Description

•     Integrated 12 Channel WAAS GPS receiver
•     GPS antenna built-in to the front panel allows reception when bracket or flush mounted
•     Ultra thin and compact rear case design (3.5” depth)
•     Meets ITU-R M493-13 Class D DSC (Digital Selective Calling)
•     Navigation to a DSC Distress Call with compass page
•     DSC test call and Auto DSC channel change selection
•     Automatically poll the GPS position of up to 4 ships using DSC
•     Enter, Save, and Navigation to waypoint with Compass page
•     GPS Compass display
•     Navigation (LAT/LON, Time, SOG, and COG) information shown on display
•     Submersible JIS-8 1.5M (4.92Ft) for 30 minutes
•     Noise canceling microphone with channel UP/DOWN, 16/9 and H/L keys
•     NOAA weather channel selection with alert
•     Programmable Scan, Priority Scan, and Dual Watch
•     Preset Key stores up to 10 favorite channels, with scan function
•     Oversized display with customizable channel names
•     NMEA 0183 Input and Output of GPS information to other devices
•     Programmable soft keys
•     Capable of connecting to a Second Station RAM3+ Remote Access Microphone
•     Intercom between radio and Second Station RAM3+ Remote Access Microphone
•     Die-cast chassis
•     3 Year Waterproof Warranty


Easy DSC and Installation!

The GX1700 makes DSC easy. With an internal 12 Channel GPS built into the front panel, there is no need to hassle with wiring the radio to a GPS for DSC. Out of the box and ready to go, DSC calling, position sharing, waypoint navigation, navigation to DSC distress calls can all be performed with just a few simple steps.

Mounting a VHF radio has never been easier. The Explorer GPS has an ultra thin, compact rear case, only 3.5” in depth or half the depth of comparable VHF radios on the market.

The Built-In WAAS GPS reciever and antenna mounted in the front panel also gives the flexibility to flush mount the radio in tight areas.

GPS Compass – Navigate to Waypoints

The GX1700 is capable of entering and saving up to 100 waypoints. These waypoints may be selected and navigated to by using a unique navigation compass display that shows your vessels SOG, COG, BRG (Bearing) and DST (Distance) to the waypoint with the internal 12 channel WAAS GPS.

ITU-R M493-11 Class D Digital Selective Calling

The GX1700 is an ITU-R M493 Class D class VHF with a separate Channel 70 receiver, which allows DSC calls to be received even when listening to communications.

The DSC DISTRESS function when activated transmits a digital MAYDAY including vessel identification, Latitude / Longitude and time, to facilitate prompt response. Additional calls that can be made are Individual, Urgency, Safety, Position Report and Send.

RAM3+ second station mic capable

Need to remotely control the VHF from your cockpit of fly bridge? The GX1700 is RAM3+ remote mic capable to control all VHF, DSC functions at a second station.

Big, bold display

There is no question about it. With a big, bold display there is no mistaking the information. The contrast and brightness can be adjusted for situations where the radio cannot be mounted directly in front of you.

DSC Position Polling and NMEA in/output

Easily share position information with other DSC equipped vessels using the position request and position reporting functions. With the push of a few buttons you can request the position of another vessel, or simply send your position information to the vessel you select.

The GPS Position of a received DSC Distress or Position Request call can be shown on a compatible GPS Chart plotter simply by connecting 2 NMEA wires.

In addition, the GX1700 may be setup to automatically poll the GPS position of up to 4 stations.

Programmable Scan, Priority Scan and Dual Watch

Scanning is not an issue with the GX1700 The radio can be setup to scan any number of channels with or without a Channel 16 as the priority channel or simply can be setup to scan between a priority channel and one other channel (dual watch).

Clearvoice noise reduction technology

The GX1700 features Clear Voice Noise Reduction Technology eliminating unwanted background noises like engines and wind during transmission. This assures transmissions are crystal clear along with dedicated 16/9, H/L keys and channel selection.

Programmable Channel Names

The GX1700 is supplied from the factory preloaded with description of the use of Marine channels (16-Distress, 22A-USCG, 71-Pleasure…). The channel names may be customized to easily understand the use of each channel.

NOAA Weather channels and Weather Alert

10 NOAA and Canadian Weather channels are pre-programmed and easily selectable using the dedicated WX key. In addition, the GX1700 can be set to monitor WX channels and provide an audible alert to inform of pending storm advisories.


Mounting Hardware
MMB-97 MMB-97
Rain/Dust Covers
Second Station
CMP31B (Black) CMP31B (Black)
CMP31W (White) CMP31W (White)
CT-100 23′ Extension Cable for CMP25 / CMP30 / CMP31



Marine Owners Manuals Accessories

8-26-2015 CMP30 Owners Manual  ( 3.36 MB )

      MLS-300 Owners Manual  ( 250.92 KB )
      MLS-310 Owners Manual (1-27-2016)  ( 788.31 KB )
Marine Owners Manuals VHF Fixed Mount

GX1600_GX1700 Owners Manual 5-29-2013  ( 4.36 MB )

      GX1700 Flush Mount Template  ( 11.13 KB )
Marine Product Images VHF Fixed Mount

GX1700_Magnifying Glass  ( 666.93 KB )

      GX1700_BLACK_Center  ( 643.22 KB )
      GX1700_BLACK_Left  ( 591.19 KB )
      GX1700_BLACK_Right  ( 550.98 KB )
      GX1700_WHITE_Center  ( 471.26 KB )
      GX1700_WHITE_Left  ( 486.57 KB )
      GX1700_WHITE_Right  ( 455.07 KB )
