›16-ch Network Video Recorder (Prime)

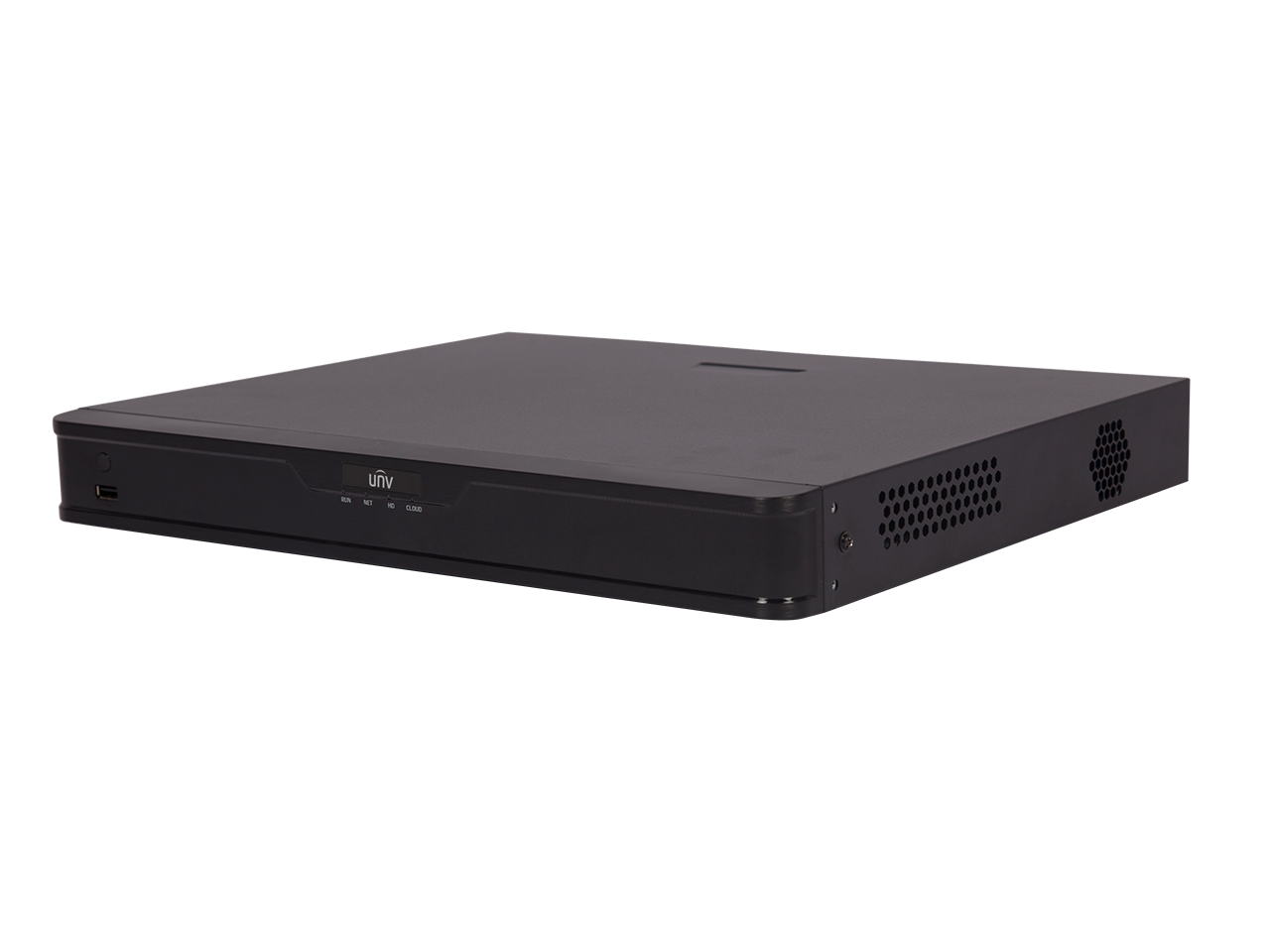

16-ch Network Video Recorder (Prime)

NVR302-16E-P16-B

16-ch 2-SATA NVR

Prime Series

Smart Functions | StarView Series | Reliable Storage

Suitable for commercial buildings, parks and small projects.

Categories:
, .
Tags:
, , , , , , , .

Product Description

• Support Ultra 265/H.265/H.264 video formats
• 8/16-channel input
• Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
• Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840×2160) resolution
• Up to 12 Megapixels resolution recording
• Up to 10TB for each disk
• Various fisheye dewarping modes for live view and playback for both web interface and GUI
• Plug & Play with up to 8/16 independent PoE network interfaces
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade

Technical Specifications

Model NVR302-08E-P8-B NVR302-16E-P8-B NVR302-16E-P16-B
Video/Audio Input
IP Video Input 8-ch 16-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 80Mbps 160Mbps
Outgoing Bandwidth 160Mbps 320Mbps
Remote Users 128
Protocols P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output VGA:
1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz
HDMI:
4K (3840×2160) /60Hz, 4K (3840×2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 8-ch 16-ch
Corridor Mode Screen 3/4/5/7/9 3/4/5/7/9/10/12/16
Decoding
Decoding format Ultra 265, H.265, H.264
Live view/
Playback		 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30
Hard Disk
SATA 2 SATA interfaces
Capacity up to 10TB for each disk
External Interface
Network Interface 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
USB Interface Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0
Alarm In 4-ch
Alarm Out 1-ch
PoE
Interface 8 independent 100 Mbps PoE network interfaces 16 independent 100 Mbps PoE network interfaces
Max Power Max 30W for single port
Max 130W in total ( 16.25W for each )		 Max 30W for single port
Max 240W in total ( 15W for each )
Supported Standard IEEE 802.3af/at
General
Power Supply 100 ~ 240 V AC
Power Consumption: ≤ 12 W( without HDD )
Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H) 380 mm × 315mm × 46 mm(15″ × 12.4″×1.8″)
Weight ( without HDD ) ≤2.42kg（5.34lb） ≤2.48kg（5.47lb）

Downloads

Datasheet of NVR302-E-P-B Series

Network Video Recorders Quick Guide-V1.04

Network Video Recorders User Manual-V1.13
